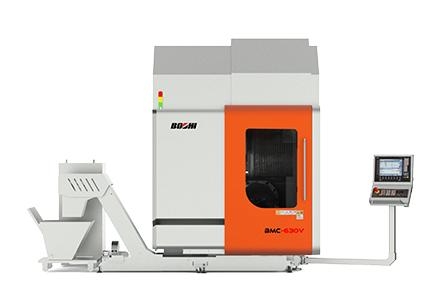

BMC-630V 5-axis vertical machining center adopts stable C-type structure, high rigid base to support swing B and C axis rotation, X / Y axis uses cross slide design, standard high-speed electric spindle, direct drive CNC rotating worktable, can be used for complex curved surface, polyhedron parts and other precision milling compound processing, widely used in new energy vehicle motor, gearbox, engine, mold, robot , medical devices and other manufacturing industries.
|
item |
BMC-630V |
|
|
Work table |
Diameter work table |
ф630mm |
|
Max.horizontal loading |
500kg |
|
|
Max. Vertical loading |
300kg |
|
|
Angle of B-axis |
-35°～+110° |
|
|
T-slot |
8×14H8 |
|
|
Travel |
X-axis |
600mm |
|
Y-axis |
450mm |
|
|
Z-axis |
400mm |
|
|
Distance between spindle nose to worktable |
150-550mm |
|
|
Spindle |
Max. spindle speed |
12000rpm |
|
Rated speed |
2000rpm |
|
|
Power of spindle motor |
11/15kw |
|
|
Spindle torque |
70/95NM |
|
|
Taper of spindle |
BT40 |
|
|
Feed |
Guide way |
linear guide way |
|
Power of feed motor for X/Y/Z axis |
2.2/2.2/2.2kw |
|
|
Rapid speed of X/Y/Z axis |
36/36/36m/min |
|
|
Max swing speed of B/C axis |
40/50rpm |
|
|
Feed speed for X/Y/Z axis |
20000mm/min |
|
|
Feed speed for B/C axis |
50rpm |
|
|
ATC |
Tool capacity |
24（disk type） |
|
Tool change type |
ATC arm |
|
|
Tool selection |
two-way nearby selection |
|
|
Max tool loading |
8kg |
|
|
Max tool diameter(adjacent/inadjacent) |
80/150mm |
|
|
Max tool length |
300mm |
|
|
tool shank |
BT40 |
|
|
Tool change time（T-T） |
2.5s |
|
|
Others |
CNC controller |
HNC 848di |
|
Air source |
0.6-0.8Mpa |
|
|
Power supply |
46kw |
|
|
Weight |
6000kg |
|
|
Dimension |
2400×3500×2850mm |
|
